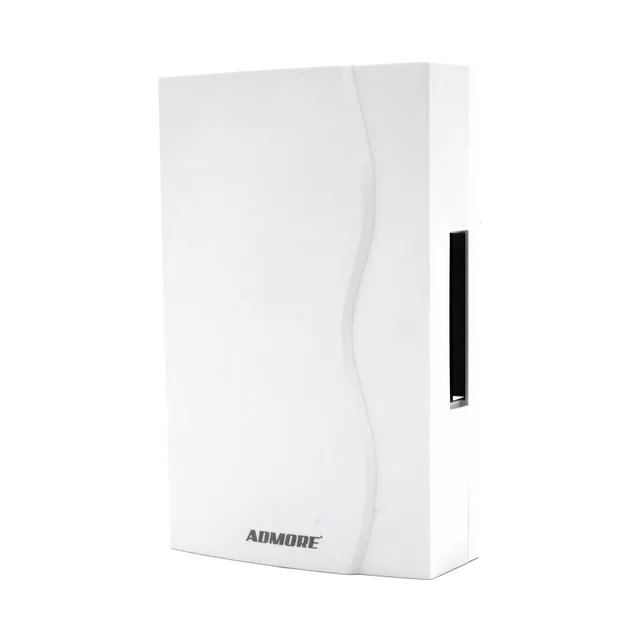

Admore Wired Mechanical Ding-Dong Door Chime — AC-Powered, Classic Two-Tone (A-DB03)

Admore Wired Mechanical Ding-Dong Door Chime — AC-Powered, Classic Two-Tone (A-DB03)

SKU A-DB03 Category: Doorbells & Chime

A classic mechanical ding-dong door chime, mains-powered for years of reliable use.

Color: White
Material: PVC
Chime Type: Mechanical

See all specifications

Ask about this product

Quantity

Enquire on WhatsApp

WhatsApp opens with the product name, SKU, quantity and link filled in. Nothing is sent until you press send there.

Admore Wired Mechanical Ding-Dong Door Chime — AC-Powered, Classic Two-Tone (A-DB03)

Specifications

11 listed

Color: White
Model: A-DB03
Mounting Type: Wall Mount
Operating Temperature: -10°C to 50°C
Power Source: AC Mains
Material: PVC
Chime Type: Mechanical
Connection: Wired
Product Type: Wired Door Chime
Sound Pattern: Ding-Dong (Two-Tone)
Operating Voltage: 220-240V AC

Description

Overview

The Admore A-DB03 is a mechanical AC door chime that produces the classic ding-dong two-tone strike sound when the doorbell push button is pressed. The mechanism is solenoid-driven — no electronics, no melodies, just a clean, resonant signal that has anchored doorbell design for decades. A reliable choice when familiarity, simplicity and longevity matter more than feature variety.

Construction & Materials

White PVC enclosure with internal solenoid coils and tone bars. Standard rectangular wall-mount form factor with rear keyhole. Long, narrow chime cavity tuned for the two-tone ding-dong strike.

Sound & Performance

Classic two-tone mechanical ding-dong, audible across typical villa floor plans. Solenoid-strike construction means consistent volume over the unit's full life — no fading speakers, no decoded audio files. Operates from -10°C to 50°C.

Installation Notes

Mount the chime on a wall and connect to an existing doorbell push button and AC mains supply. Installation should be carried out by a qualified electrician with mains power isolated.
