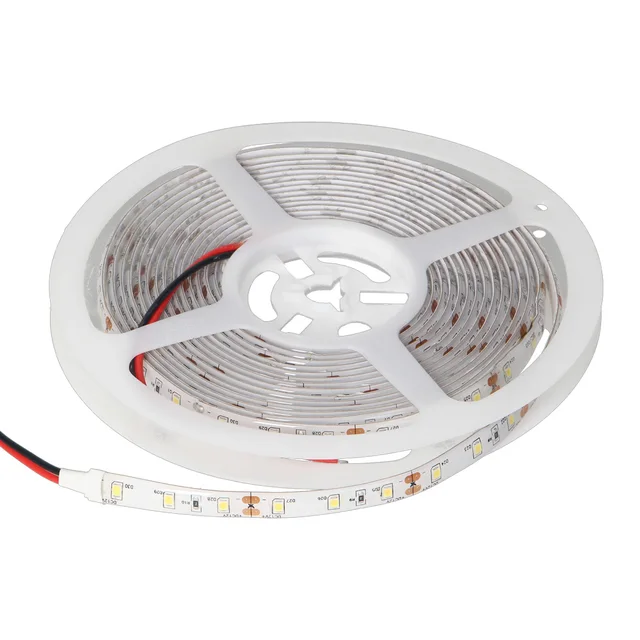

Admore 5m 12V LED Strip Light — Warm White 3000K with AC Adapter (A-12VSMD-WW)

SKU A-12VSMD-WW Category: Rope & Stripe Lights

The Admore A-12VSMD-WW is a 5-meter 10W 12V DC SMD LED strip light in warm white (3000K) on an adhesive-backed reel, supplied with a wall AC-to-12V adapter. Designed for indoor ambient lighting — TV backlight, headboard glow, under cabinets, bedroom

Key details

Power
10W Total (5m strip)
Length
5 meters
Cuttable
Yes (every 2.5cm at marked intervals)
LED Type
SMD 2835
See all specifications

Ask about this product

WhatsApp opens with the product name, SKU, quantity and link filled in. Nothing is sent until you press send there.

Specifications

Power
10W Total (5m strip)
IP Rating
IP20
Material
Flexible PCB with 3M Adhesive Backing
Length
5 meters
Cuttable
Yes (every 2.5cm at marked intervals)
LED Type
SMD 2835
Light Color
Warm White
Fixture Type
LED Strip Light
Product Code
A-12VSMD-WW
Lifetime Hours
30,000 Hours
Light Direction
120° (Single-Sided Emission)
Color Temperature
3000K
CRI (Color Rendering Index)
≥ 80
Included Adapter
AC-to-12V DC Wall Adapter
Adapter Input Voltage
110-240V (50Hz) AC
Strip Operating Voltage
12V DC

Description

Overview

The Admore A-12VSMD-WW is a 5-meter flexible LED strip light at 12V DC, finished in warm white (3000K). Ships on a clear plastic reel with red/black DC supply leads and a wall AC adapter that converts standard 110-240V mains to the 12V the strip needs. Adhesive backing allows direct stick-on installation along edges, recesses and concealed runs.

Construction & Materials

Flexible 5-meter PCB strip with surface-mount SMD LEDs spaced at regular intervals, with 3M-style adhesive backing on the underside. Cuttable at marked 2.5cm intervals; solder or push-fit connectors can join new lead wires at any cut point. The supplied 12V DC adapter has a standard AC plug on one end and a DC barrel on the other for the strip lead.

Adapter input 110-240V/50Hz AC; strip operates on 12V DC drawing 10W total over the 5-meter length. CRI ≥80. Not weatherproof — indoor dry-use only.

Applications

Indoor ambient lighting in residential settings: TV backlight and bias lighting, behind-headboard bedroom glow, under-cabinet kitchen accent, behind-mirror lighting in bathrooms and dressing areas, display shelf lighting and corner cove glow. Warm white 3000K creates a cozy hospitality feel suited to lounge, bedroom and dining areas.

Installation Notes

Clean the surface, peel the adhesive backing, then stick the strip to a flat, dry surface. Cut at the marked 2.5cm intervals only. Plug the 12V DC adapter into a standard wall outlet, then connect its DC barrel to the strip lead. Do not exceed the adapter's wattage rating when joining cut segments.
